D45AU Fog Cannon

Dust Suppression in any Environment, all new Diesel Fog Cannon

Home

Products

D45AU Fog Cannon

mobile mist cannon

D45AU Mist Cannons powerful, high-speed fan, projects a cloud of targeted mist (pressurised water) into the air. 45m throw, 18ltr / minute rate.

Some sites such as mines or other industries cannot have petrol generators. For this reason, OZmist has created our newest fog cannon, the D45AU with 25KVA diesel generator for worksite dust suppression. The D45AU joins the series as a smart choice for worksites and projects, looking for a Aussie built cannon to support their team & projects regardless of the environment.

Key Features

Mist Throw
Mist Throw	45-50m	Mobility	Forklift Accessible
Oscillation	330 degrees	Pump	18L/PM 3 phase – 1000psi
Water tank	Nil	Weight	1400kg

Key Features

Mist Throw
Mist Throw	45M	Mobility	Forklift Accessible
Oscillation	340 degrees	Pump	18L/PM 3 phase – 1000psi
Water tank	1200 litres	Mounting Unit	Free-Standing or Mounted on Utility Vehicle

Description
Benefits
All Features
FAQs
Specifications

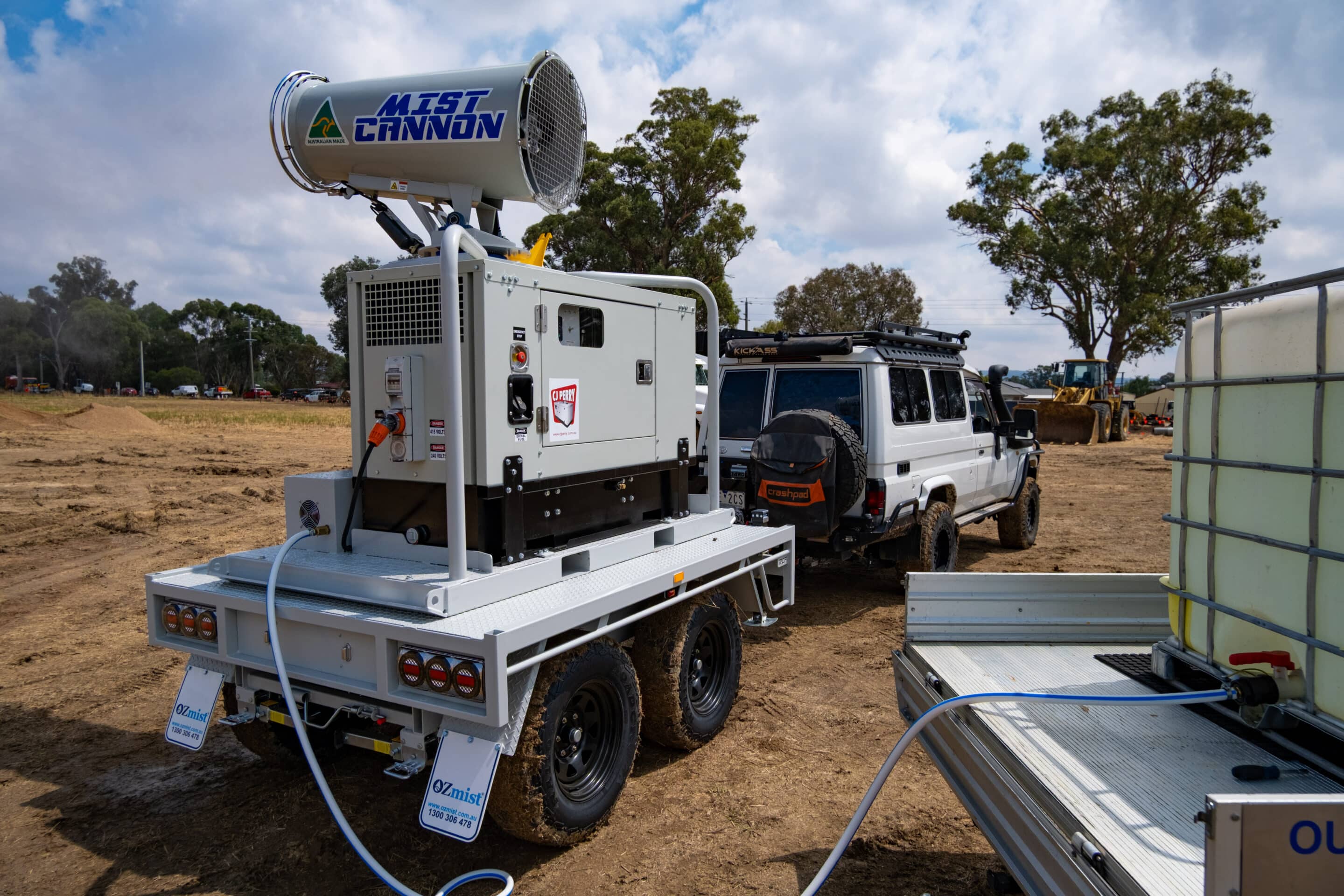

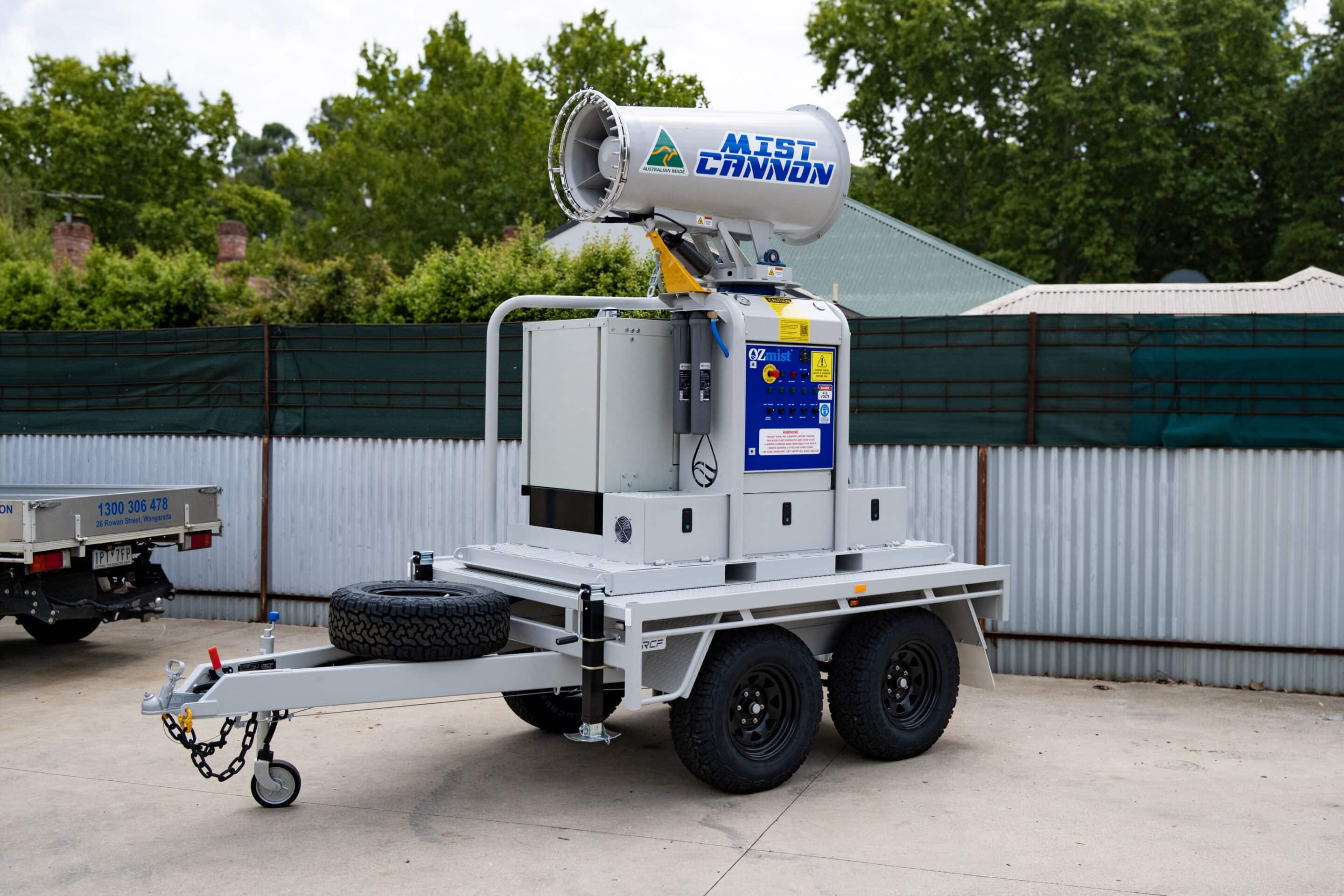

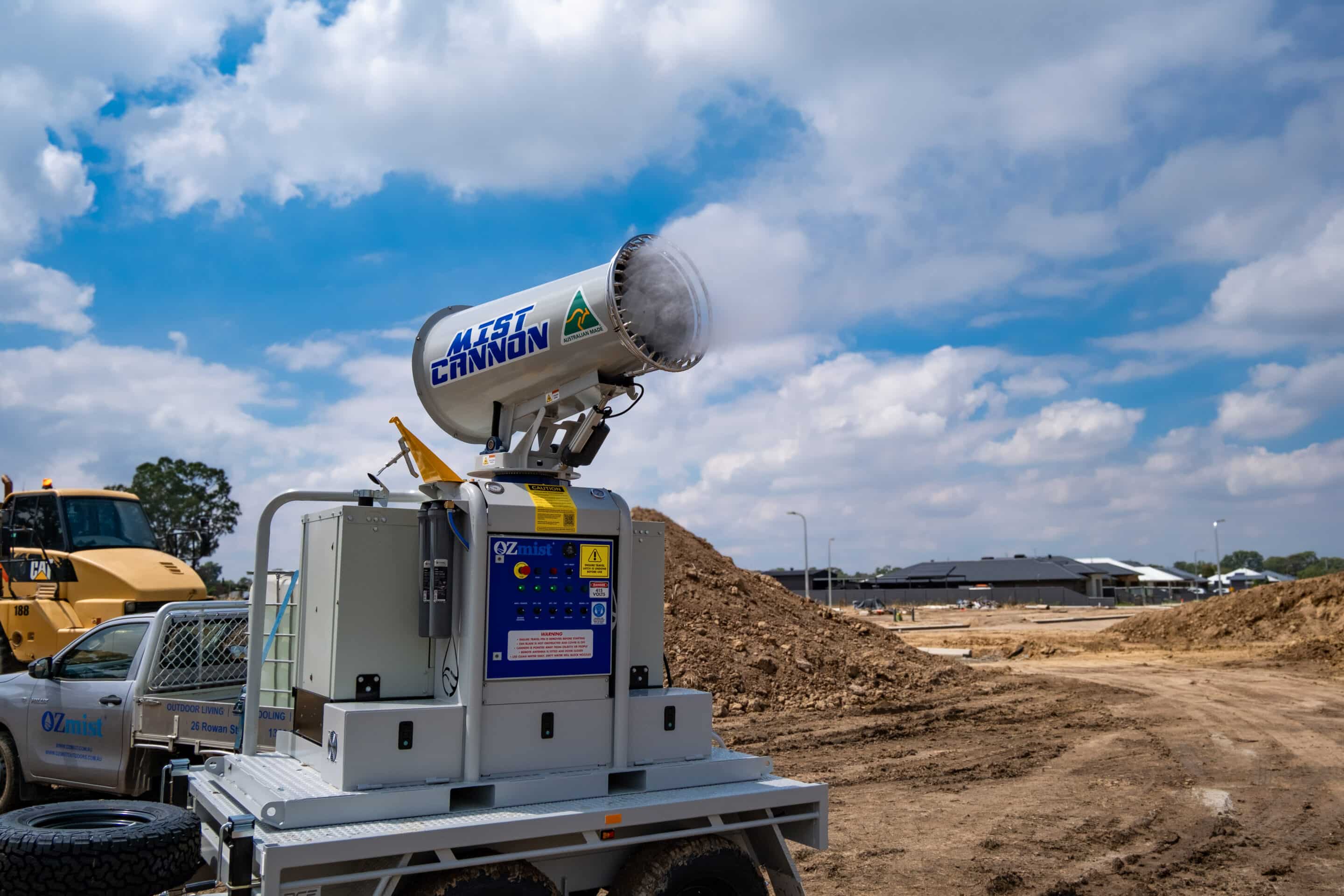

Diesel Powered, Dust Suppression in any Environment. Designed and built by OZmist as a solution for diesel only worksites and environments. 1000psi pressure and 60 x OZmist screw in nozzles create super fine mist, which encapsulates fugitive dust and airborne particles across large areas, dropping them to the ground.

A high-powered mist cannon with 330 degree rotation and up to 50m throw.

The D45AU joins the range in 2023/24 with a powerful 25KVA gen set and smart cradle design, allowing the gen set to be removed and used elsewhere if needed.

Forklift pockets allow it to be easily moved around on site. Australian made. Oscillation, adjustable pitch from both the control panel and remote control operation up to 100m range. Needs a direct water connection. Consumption is 18ltr / minute.

The D45AU unit’s powerful, high-speed fan, projects a cloud of targeted mist (pressurised water) into the air. A must have diesel mist cannon for worksite safety, air quality, compliance etc.

View D45AU Brochure

D45AU Fog Cannon

D45AU Fog Cannon

Mist Cannon

Huge 45-50m throw from 5.5KW fan
330 degree oscillation
Horizontal to 45 degree pitch lifting actuator

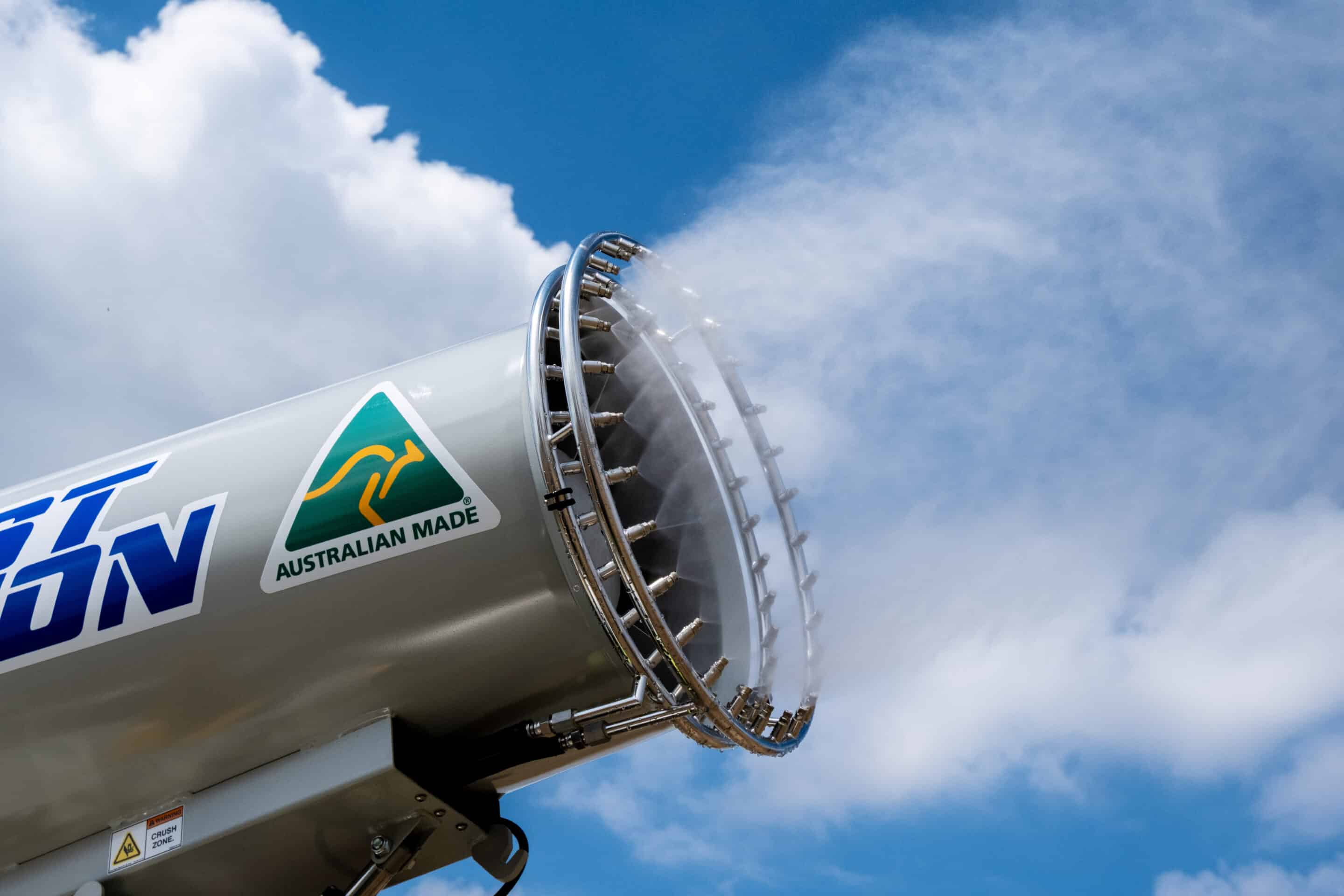

Double stainless rings with 60 precision, ultra fine misting nozzles
Robust Proximity Switches

Electrical

High Pressure Pump

An OZmist 18ltr/min 3 phase industrial mist pump pressurises water to 1000psi within the system.
The pump requires minimal servicing and is easily accessed for maintenance
The mist pump is fed water from a DAB transfer pump
Pressure gauges are fitted for easy readout while operating.
Twin water filters are fitted, 10 and 5 micron. Filters are easily sourced and easy to change as required.
Secure hose connection for direct water feed.

Frequently Asked Questions

What is the maximum Forklift Tyne that will fit in the D45AU?

The D45AU is fitted with Tyne Channels that are 140mm Wide and 70mm Tall to suit small to medium sized Forklifts

What Maintenance is required with running this Machine?

The D45AU requires periodical servicing, the oil should be changed after the first 50 hours of operation and then after every 250 hours. The 10 & 5 micron water filters should also be checked regularly to ensure that there is no dirt buildup.

Specifications

Dimensions
Dimensions
Length:2150mm Width:1200mm Height:2310mm
Water Tank Capacity:
Nil – direct water feed required
Weight:
Dry Weight including Generator: 1400kg

Dimensions
Flow Rate:
18 L/min of Mist per minute 2 x 30 nozzle mist rings (total 60 nozzles)
Transport:
Fork lift from 2 sides
Generator:
25KVA diesel generator
