Patiomist Portable Misting Fan

Portable Cooling Technology for Domestic Applications

Home
Products
Patiomist Portable Misting Fan

Patiomist Portable Misting Fan

An OZmist PatioMist fan is a great choice as an entry level mist fan, providing cooling benefits far beyond conventional fans alone. Evaporative cooling creates a very fine mist & our fans powerful circulation delivers a cool breeze & lifestyle where you need it most!

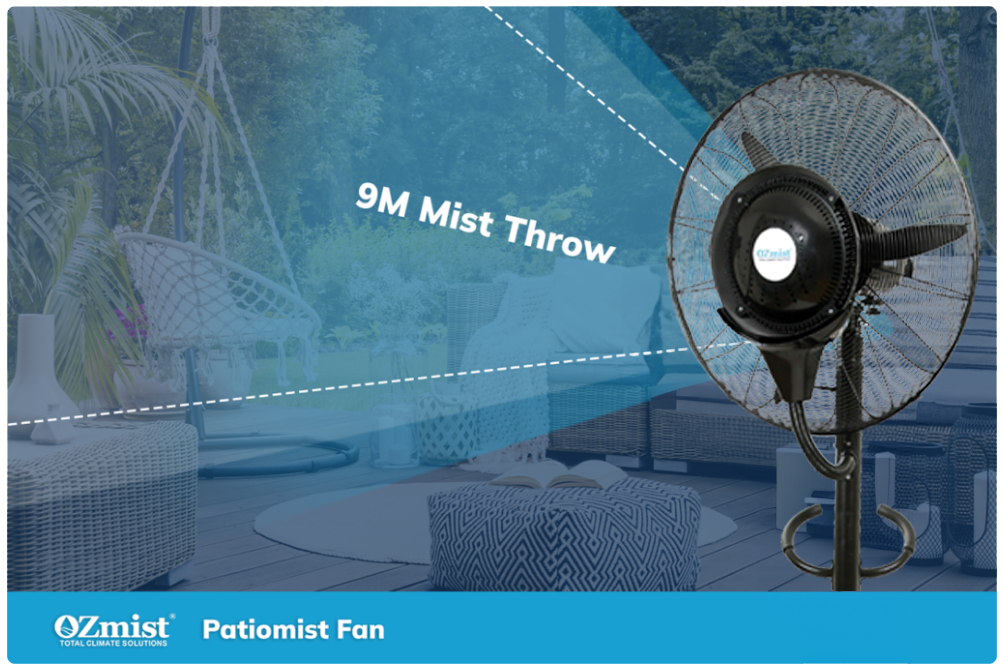

PatioMist’s feature a 650mm diameter fan, own water tank and built-in pump capable of throwing cool refreshing air over 9 meters! These are a great budget option for an undercover home entertaining area,  business space, workshop or shed.

Excessive heat impacts comfort, physical safety and mental wellbeing, so bring a much cooler change this summer to your family, friends, workers, & animals too!

By introducing an OZmist system into your space, you’ll see the range of applications available and difference flash evaporative cooling makes.

Speak to our team about which heat management option would work best for your environment and budget. Options include our domestic PatioMist fan, PortaMist mk2 , KTW outdoor commercial fans, or range of industrial fans for factories and workshops!
We also hire & sell our CanCool units which are used extensively in small or large events, music festivals, sports venues etc.

Key Features

Mist Throw
Mist Throw
9M
Mobility
Easy to move (Portable Model)
Oscillation
On/Off Control
Pump
Submersible 240v Electric Pump
Water tank
70L Portable
Mounting Unit
Sturdy Frame with Lockable Castor Wheel

Key Features

Mist Throw
Mist Throw
9M
Mobility
Easy to move (Portable Model)
Oscillation
On/Off Control
Pump
Submersible 240v Electric Pump
Water tank
70L Portable/ 8L Wall Mount
Mounting Unit
Sturdy Frame with Lockable Castor Wheel

PatioMist Portable

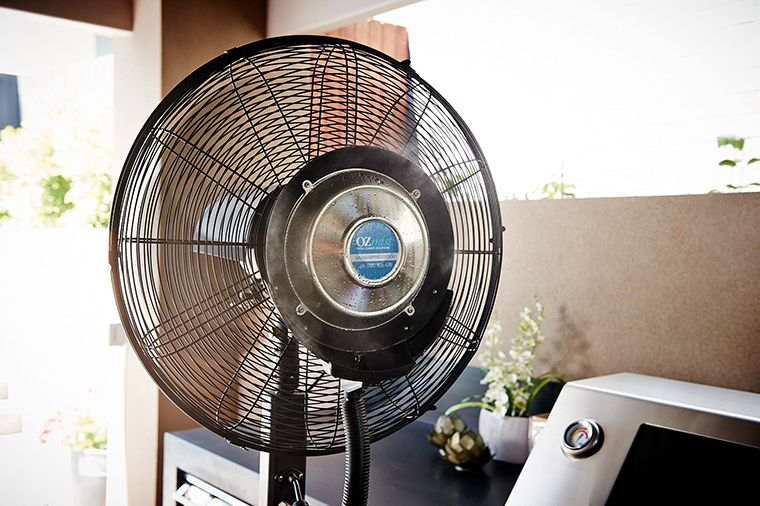

These do not need a high-pressure pump module to create the very fine mist required for fast and efficient cooling. Instead, they use water pumped from the attached storage tank onto a stainless steel disc that spins at very high speeds.

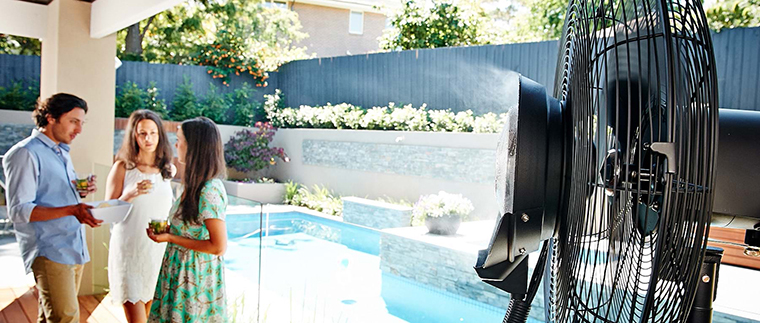

Perfect for hot summer days, these OZmist PatioMist cooling fans create millions of very fine droplets that are blown away from the fan to create a cool refreshing breeze.

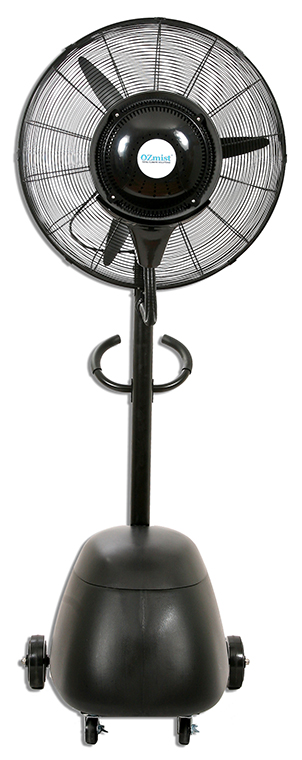

Patiomist Portable

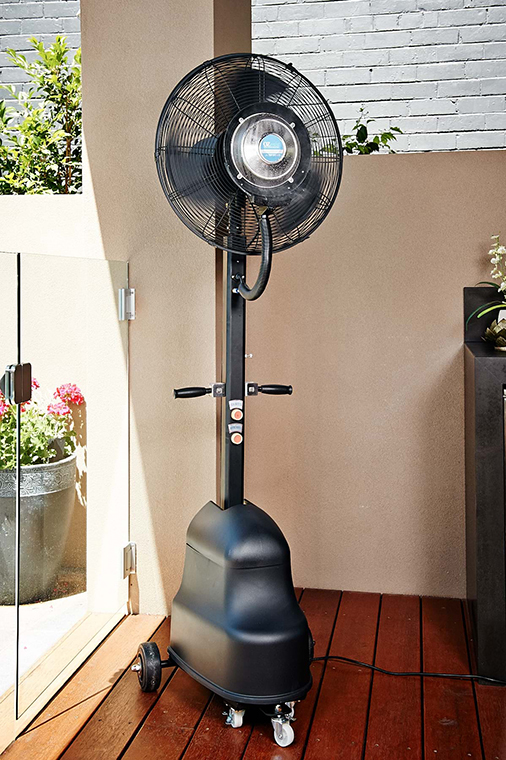

A 70-litre plastic water tank is fixed to the sturdy steel frame and contains enough for around 8 hours of operation. The Pedestal (Portable) fan unit has castors fitted to a sturdy steel frame making it stable and easy to move. Simply connect to a power supply and wheel around the yard or workshop.

Patiomist Portable Fan

Patiomist Portable Misting Fan Benefits

Patiomist Portable Misting Fan

Frequently Asked Questions

The Patiomist Portable runs from a single 240v 10A 3-Pin Power Plug

The way that Mist Cooling works you will not see any benefits to adding ice to the water tank. Cooling happens as the Mist is projected out of the fan and “flash-evaporates” as it contacts the warm air, this causes the hot air to dissipate and leave cool air in its place

Specifications

Patiomist Fan

Dimensions
Dimensions
Height: 1,700mm
Width: 700mm (Water Tank Width)
Width: 750mm (Fan Head Width)
2,500mm Long Power Cable
Water Tank Capacity:
70 Litres
Weight:
Dry Weight: 42kg
Wet Weight: 120kg approx
Dimensions
Flow Rate:
N/A
Transport:
Castors Fitted to a Sturdy Steel Frame
Generator:
240 volt, 50 Hz, .4KW combined power usage

Watch PatioMist Fan Setup Video

Play Video

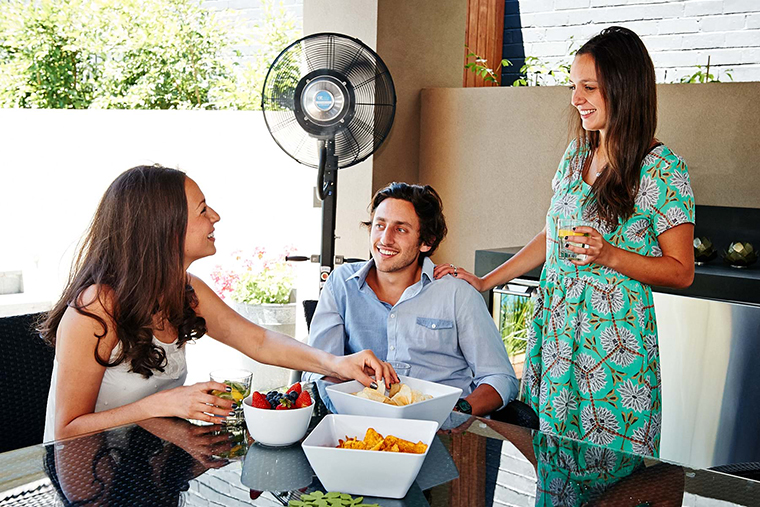

Efficient Cooling For Your Home

The Patiomist Portable offers an affordable misting solution at home without the need to run an expensive high-pressure misting pump, the Patiomist Portable is easy to set up out of the box and will provide efficient and effective cooling for your home space.

With variable fan speeds and the ability to oscillate left and right these fans will keep you cool throughout the warmest months

Other Mist Fans Solutions

Portable misting fan

Portamist MK2 fan - the best option for quality results & cooling

Used For
Indoor & Outdoor Areas
Mist Throw
8-12m
Tank Size
50L
Mobility
Portable
misting outdoor fan

KTW Outdoor Misting Fan

Used For
Outdoor areas
Mist Throw
8-10m
Tank Size
N/A
Mobility
Fixed
You can download this brochure here:

Why OZmist?

From a clients perspective, dealing with a local Australian based manufacturer, means having quality products, direct communication, knowhow, support, service parts, hire units & backup available, so operations run smoothly, safely and without delays.

Cooling: Our high pressure misting solutions are made from the highest quality components and effective Australia wide. As pioneers, manufacturers & experts in misting delivery, we’ve developed and built solutions which are used across the country cooling hospitality & live music venues, major festivals, sports clubs & events, theme parks year round, schools, factories, livestock, zoo’s etc etc.

Industrial Misting: Our misting systems are incredibly effective in controlling fugitive dust, airborne particles, pungent odours etc found in heavy industries, quarries, waste and recycling plants, worksites, construction projects etc.

From our team, we’re dedicated to providing our clients the best possible outcome with proven ongoing results. This is what keeps driving OZmist.



OZmist Total Climate Solution

Speak To An Expert

Get into contact with one of our misting specialists, who will happily respond to any queries you have about cooling, odour suppression and suppression. We aim to get back to you within 48 hours.
